φ80x1.5xφ22P-1098

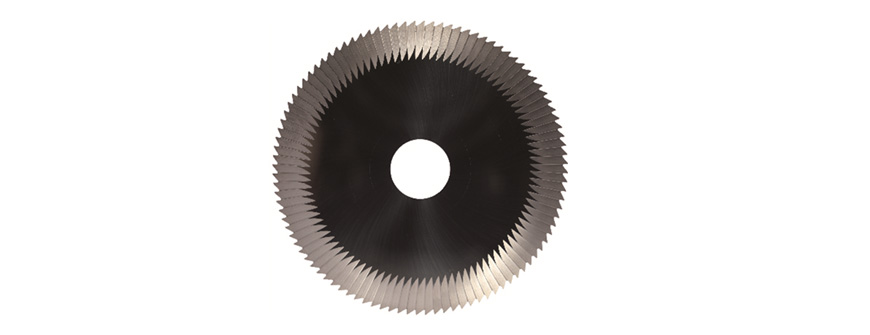

SIDE MILLING CUTTER

ORDER CODEP-1098
Solid carbideCarbide
Our price$69

PRODUCTS DETAILS
PRODUCT REVIEWS

specification
quick details
description
packing

specification

Order code	Raise ref	material	size	price	Quantity	Add to cart
P-1105	SG2/FP21	HSS	φ80x1.5xφ22	$57

Quick details

QUICK DETAILS

Order code:P-1105
RAISE Ref. :SG2/FP21
Material:HSS
Compatible with machine:SILCA OPERA/TECHNICA/SILCA TARGA 2000

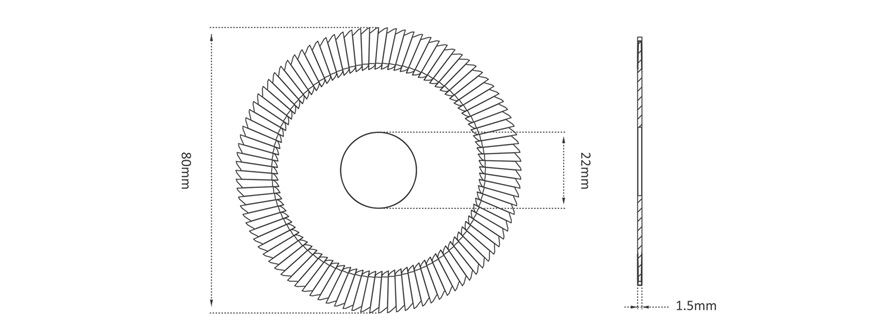

D[mm]:80
d[mm]:22
Thick[mm]:1.5
*Click the machine name to get all the cutters for this machine
*SILCA IS A TRADEMARK OF A THIRD PARTY NOT AFFILIATED NOR LINKED WITH RAISE KEY CUTTER(ZHANGJIAGANG RUIZHNEG TOOL.,LTD)

1
compatible with machineSILCA OPERA/TECHNICA/SILCA TARGA 2000
2
MATERIAL 1.It is made of HSS-Co(HSSM35) material imported from Japan, high temperature quenching, hardness reaches HRC64-65, ultra-high temperature quenching, high hardness, copper key and iron key can all be cut, good wear resistance, Durable.2.Production process: Using full CNC grinding machine, full grinding technology, with sharper tip so as to cut the key easoer. The cut key is smooth and burr-free.3.Black TiAlN coating process: imported nano-coating equipment for high hardness coating, good friction properties can reduce cutting, coating hardness 3500HV, very high thermal resistance, wear resistance increased by 50%, comprehensively beyond yellow TI coating cutter.
4
Production process After seven grinding processes, CNC precision grinding process, the cutting edge is extremely grinding process, the cutting edge is extremely sharp. In particular, the side edge is sharp, and the depth of the side edge ensures the sharpness of the processing on the side of the Mortice key.

SUIT FOR PROCESSING KEYS

All inner milling slots and outer milling slot keys, suitable for processing nickel silver keys, which can efficiently process original and high-hardness key blanks, such as Honda original keys, STRATTEC key blanks, etc.

SUIT FOR PROCESSING KEYS

Product Video

55, 60, 80 end mill series difference table

	55 COMMON GRADE	60 UNIVERSAL GRADE	TOP 80 SWIss GRADE
Material	Material with good breaking resistance	Material compatible with wear and break resistance	The High Hardness and the longest-wearing type material
For key	Civil key and copy car key	Mainly for copy key	Original high hardness key
For machine	Mainly for Manaul type key duplicator machine	Mainly for CNC key duplicator machine	CNC key duplicator machine
processing	High accuracy grinding	High gloss grinding on flute	Mirror grinding on the flute
Tolerance	0.01mm	0.01mm	0.005mm
Using life	More than 30 pieces multitrack key	Cutting 100 pieces keys	Cutting 100 pieces original Nickel Silver keys
